RZH—12—45
Runzhihui Diameter Angle

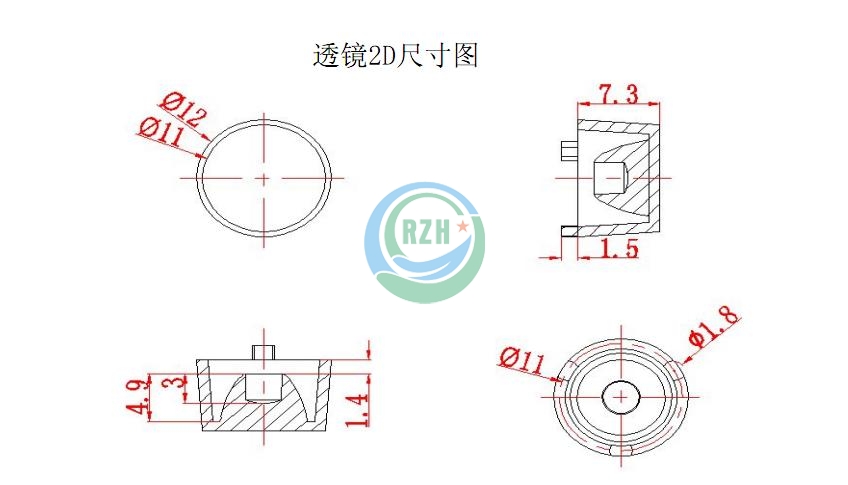

details:
Angle: 45 degrees
Match: 8MM lens
Diameter: 12MM
Height: 6MM
Lens material: optical grade PMMA

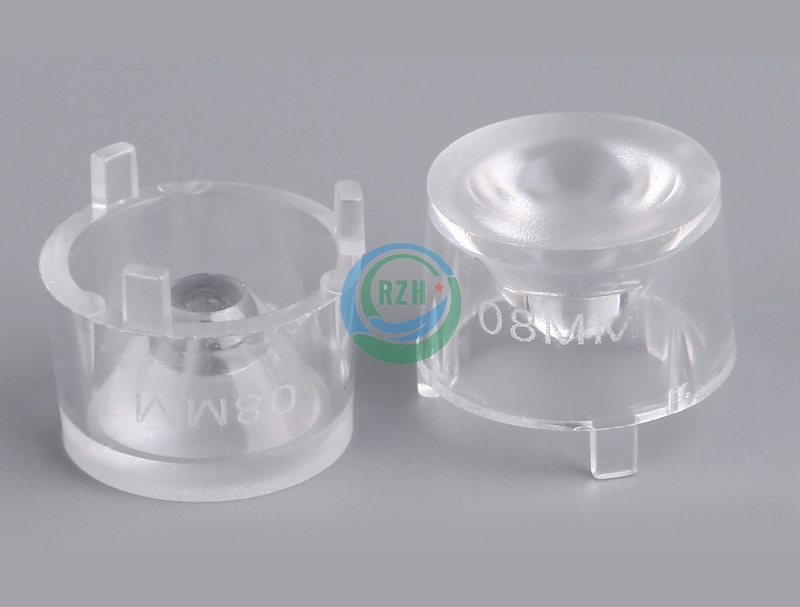

Product description: flat convex edge frosted integrated carved with 8MM, three pillars at the bottom
Temperature resistance: -40-+100 degrees

Applicable infrared LED: 2835 infrared LED

Features:
1. Product description: The surface is a flat frosted structure, the edges are frosted, and the bottom has three pillars for the main fixing function;
2. Specially designed for 2835 infrared LED, the utilization rate of the light emitted by the LED can reach more than 90% (3MM light transmittance is 93%);
3. This series of products are mainly used in infrared cameras, with 12MM, 8MM, 6MM, 4MM and 3.6MM lenses;
4. All designed for smooth face, compact size, saving internal space, and matching with 75, 60, 50 small light boards;
5. The size and angle of the same specification are: 45 degrees, 60 degrees, and 90 degrees to choose from;
6. This product adopts high-precision aspherical optical design, imported mold steel, and original imported optical acrylic (PMMA) from Japan's Mitsubishi.
Raw materials, ensure sufficient injection molding time and reduce product shrinkage. All products have passed SGS certification and ROHS environmental protection requirements.

Application:

Widely used in infrared surveillance products such as infrared array cameras, infrared dome cameras, shaking heads, smart homes, etc.
